Price range: $4,262.88 through $5,451.92
High performance, yet compact and lightweight, the Warrior lite is an optimal configuration for space and weight restricted rescue teams, first responders, emergency medical services (EMS), helicopter emergency medical services (HEMS), and critical care transport teams.
The Warrior lite has been designed to support the needs of space- and weight-restricted first responders, rescue teams, and critical care transport teams, providing a lightweight and compact solution while delivering uncompromising performance. Among all battery-operated solutions, the Warrior lite’s performance is second only to the Warrior and Warrior EXTREME models. It not only delivers high performance levels but also does so at a significantly lower cost of ownership compared to all modern battery-operated warmers; making it a true win-win solution.
The Warrior lite:

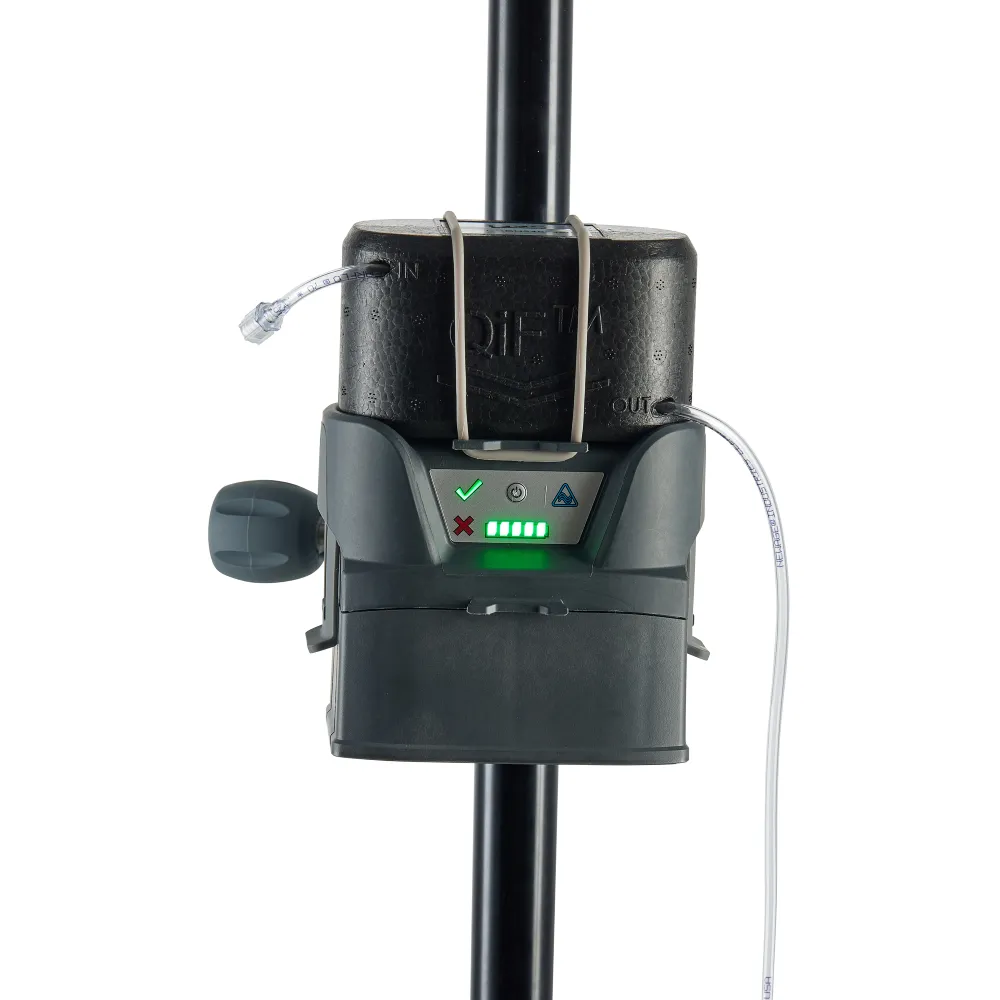

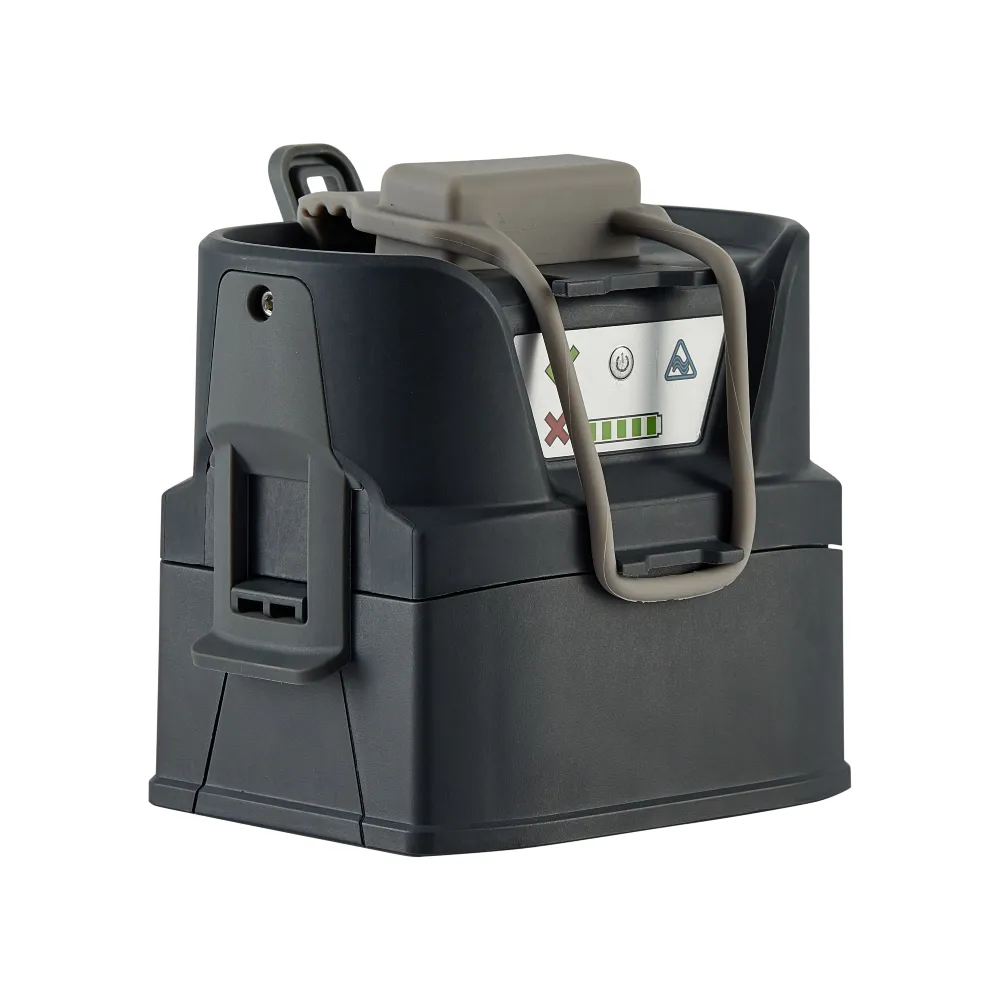

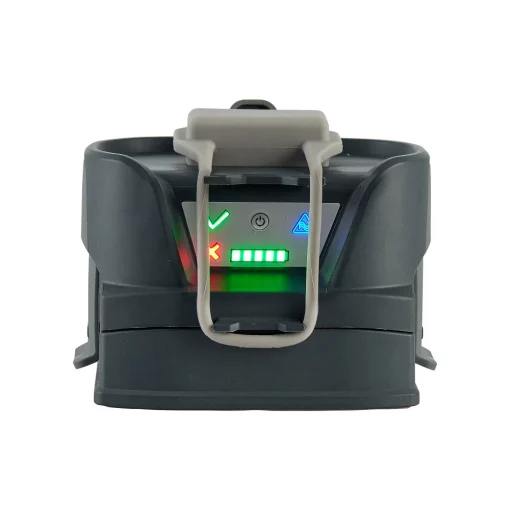

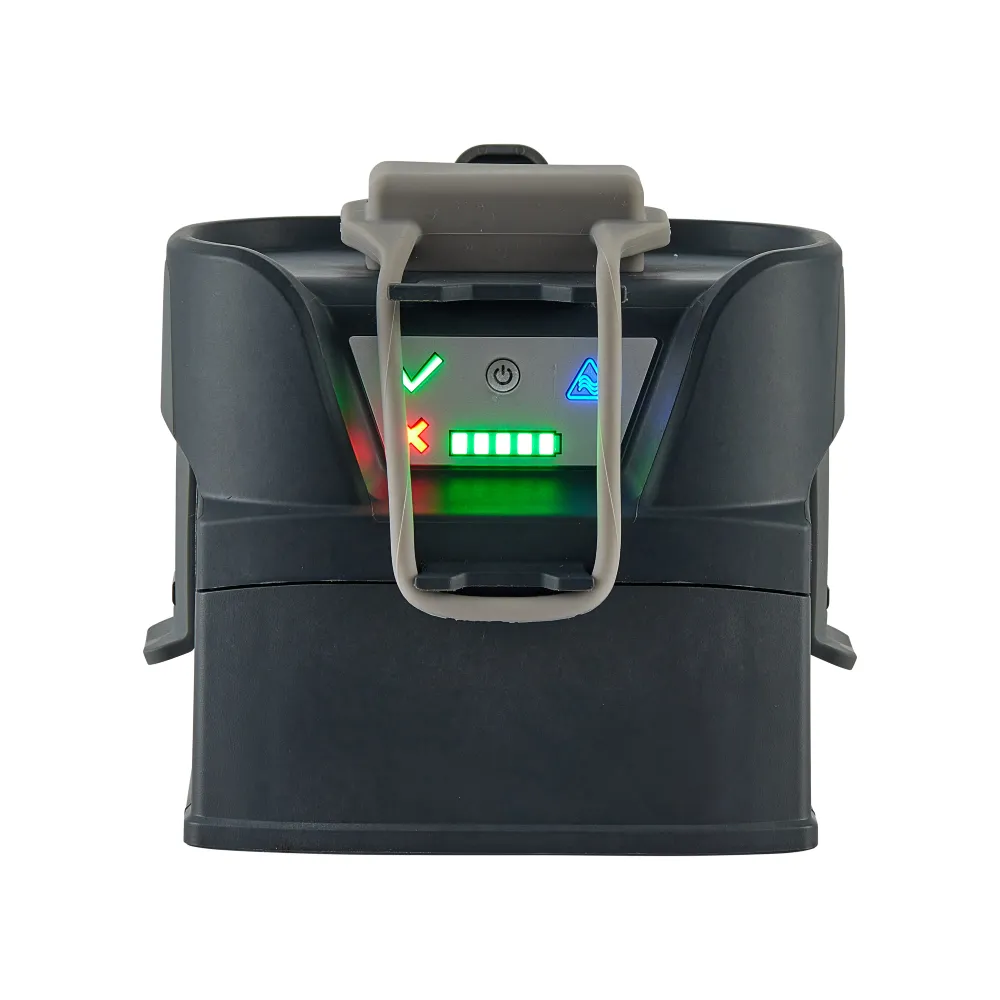

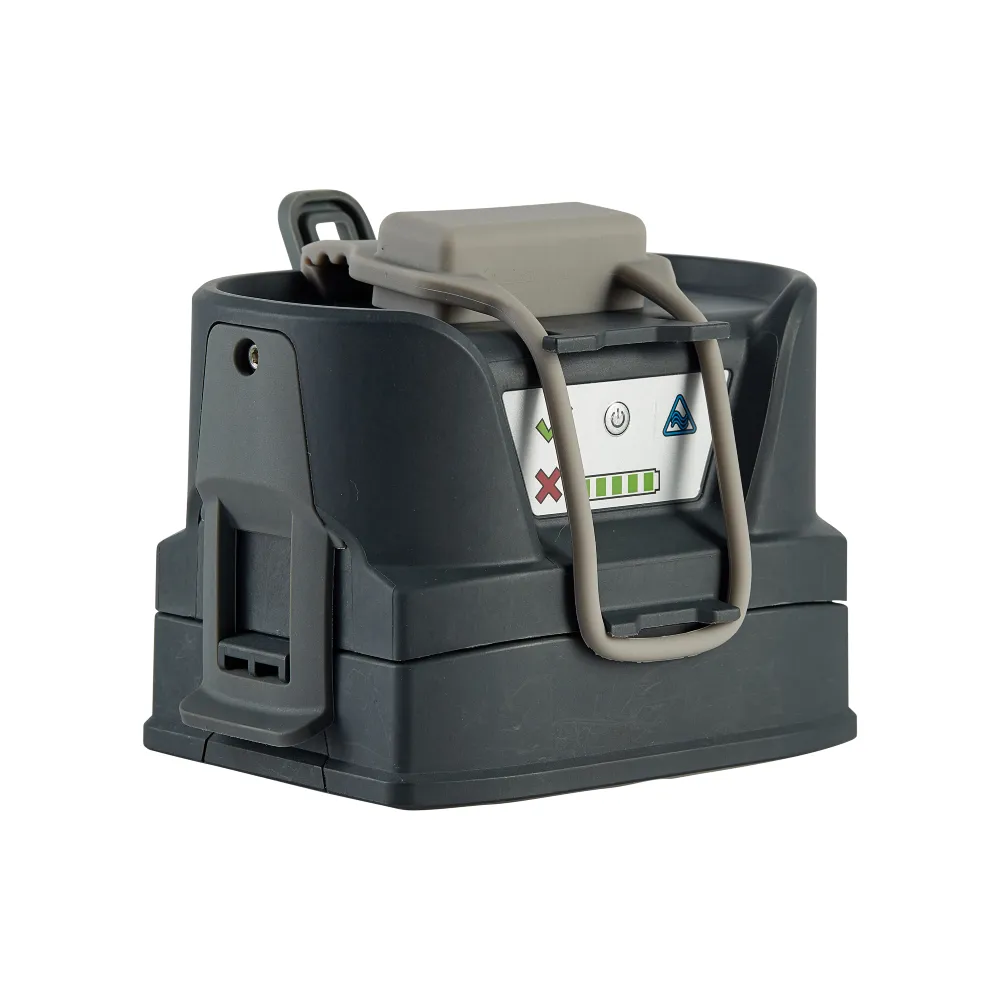

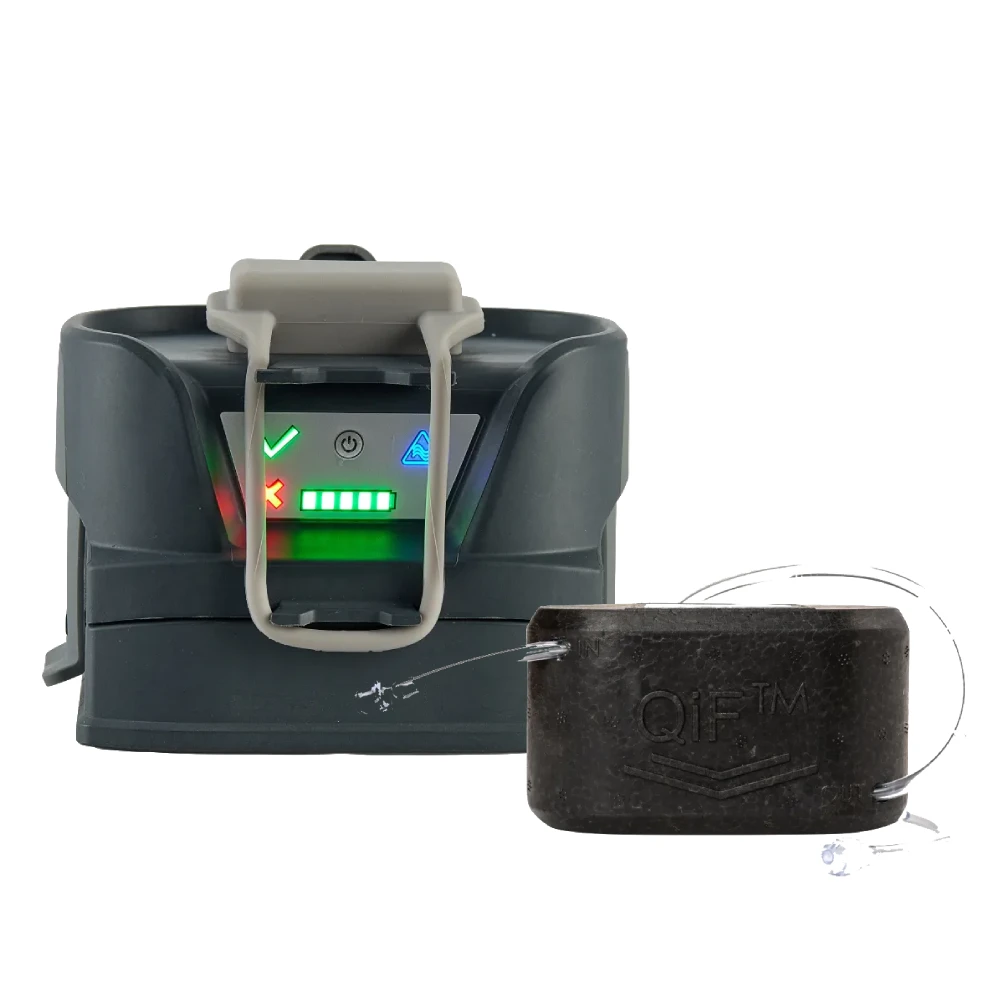

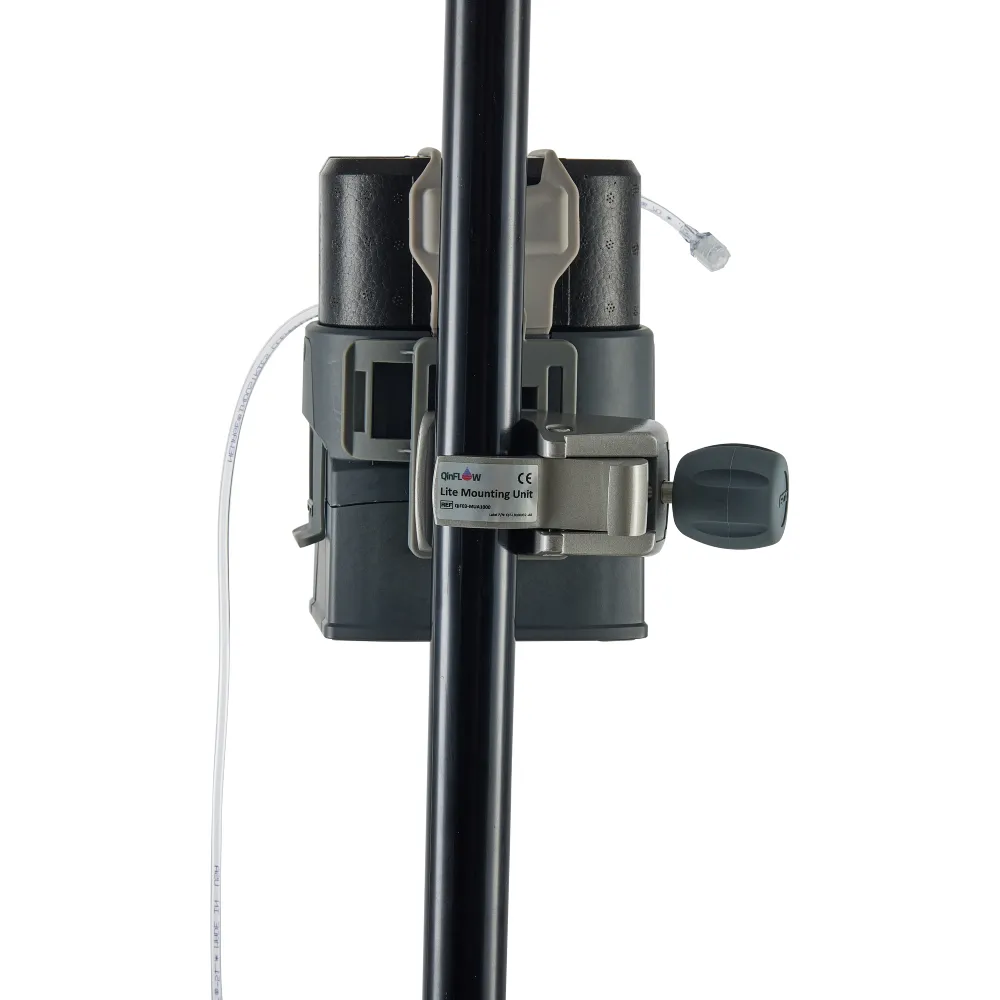

The Warrior lite is a 3-part system composed of a controller (Base Unit, or “BU”), battery, and consumable single-patient warmer (i.e., Compact Disposable Unit, or “CDU”). Several accessories are offered to optimize configuration of operating environments, such as a mount accessory and extension cable. Assembly is simple and fail-safe and takes seconds to accomplish. Blood or fluids will be warmed almost from the first drop, even at high resuscitation rates. The LED display is designed to support night-vision goggles. The consumable’s fluid path is aluminum-free, thus eliminating toxicity concerns associated with aluminum. Instead, the consumable uses patented medical-grade stainless steel warming technology. The efficiency of our technology ensures immediate warming. The system measures fluid temperatures a few hundred times per second and automatically adjusts the heating to ensure 38°C (±2°C) output. Thus, the Warrior lite handles rapid bolus flows generated by push-pull, hand pump, syringe, or other flow-inducing devices such as LifeFlow™, which are common in trauma and medical emergency settings, exceptionally well. The technology has been perfected over >150,000 utilizations.
High Performance
Designed with the User in Mind
Cutting Edge, Mature, and Safe Underlying Technology
Practically Zero Maintenance
* The figures relate to a single, fully charged, Extra Power battery operating at 20°C ambient conditions. The lite battery maximum warming range is between 170ml/minute (cold-stored blood) and 250 ml/minute (room temperature fluids).
** The lite battery warming capacity is approximately half of that of the Extra Power battery.
lite Battery |
Extra Power Battery |
|
Performance |
||
| Cold-Stored Blood Max Delivery Rate | 170 ml/min | 180 ml/min |
| Room-Temp. Fluids Max Delivery Rate | 250 ml/min | 270 ml/min |
| Cold-Stored Blood Max Battery Capacity (Units) | 3 units of Whole Blood | 6 units of Whole Blood |
| Room-Temp. Fluids Max Battery Capacity (Liters) | 2.4 liters | 4.5 liters |
Physical Characteristics |
||
| Dimensions (H x W x L) | 8.4 x 8.8 x 11.5 cm / 3.3″ x 3.46″ x 4.52″ | 10.5 x 8.8 x 11.5 cm / 4.13″ x 3.46″ x 4.52″ |
| Weight (Base and Battery) | 0.8 kg / 1.76 lb | 1.09 kg / 2.39 lb |
Battery Characteristics |
||
| Battery Type | Rechargeable, Li-ion, 18.0V, 3.0Ah, 54.0Wh | Rechargeable, Li-ion, 18.0V, 5.5Ah, 99Wh |
| Battery Charging Input Voltage | 100-240 VAC | 50-60 Hz | Max 1.0 A | 100-240 VAC | 50-60 Hz | Max 2.0 A |
| Battery Life | 250 full cycles or 3 years | 250 full cycles or 3 years |
Standards and Safe to Fly(partial list) |
||
|
|
|
Environmental Specifications |
||
| Storage Conditions | -20°C to 70°C (-4°F to 158°F); 93% RH | -20° to 70°C (-4°F to 158°F); 93% RH |
| Operating Conditions | -5°C to 50°C (23⁰F to 122⁰F); 90% RH | -5°C to 50°C (23⁰F to 122⁰F); 90% RH |
| Transient operating conditions | -20°C to 50°C (-4°F to 122°F); 90% RH | -20°C to 50°C (-4°F to 122°F); 90% RH |
| Atmospheric Pressure /Altitude | 549 to 1,060 hPa / -400 to 4,572 meter (-1,312 to 15,000 ft) | 549 to 1,060 hPa / -400 to 4,572 meter (-1,312 to 15,000 ft) |
| Ingress Protection (IP) | IP56 | IP56 |
The Warrior lite is marketed in the USA, Canada, EMEA, Australia, and New Zealand.
To get a quote for our Warrior lite, kindly contact your local QinFlow rep (Find A Distributor), Contact Us, or simply Request A Quote.
The information provided in the Instructions For Use (IFU) shall govern in case of conflict. The information provided here is adjusted to CE approvals; for exact specifications and availability of the USA-cleared version, please refer to the relevant IFU or contact your QinFlow representative.
