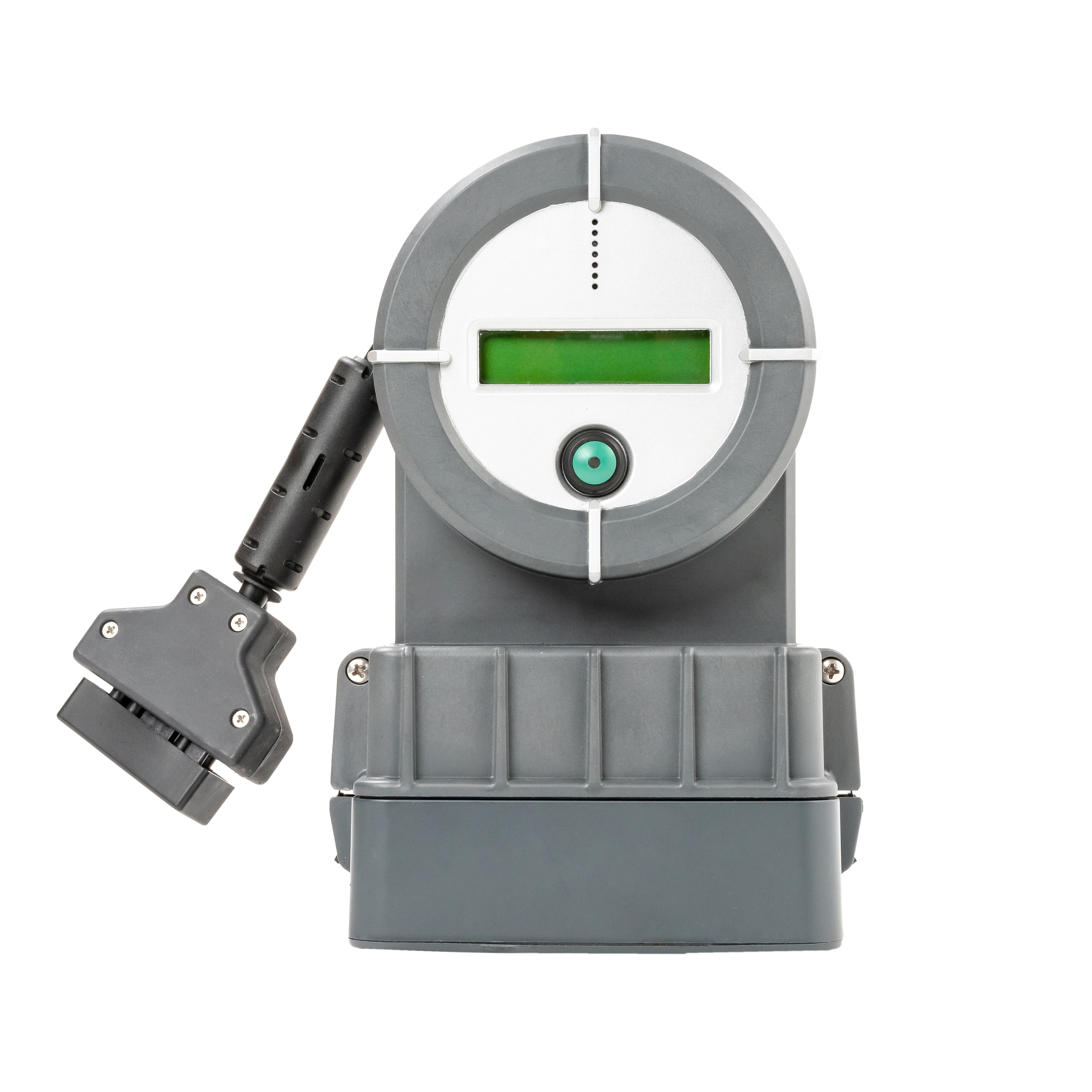

Warrior & Warrior EXTREME

With its unmatched performance, the Warrior is an ideal blood/IV fluid warming solution for for mid- to long-haul pre-hospitals transports, inter-facility transports, and hospital’s emergency departments that advocate simplicity and portability. Its performance makes a huge difference in environments in which aggressive bolus flows are applied in an intermittent fashion by push-pull resuscitation methods.

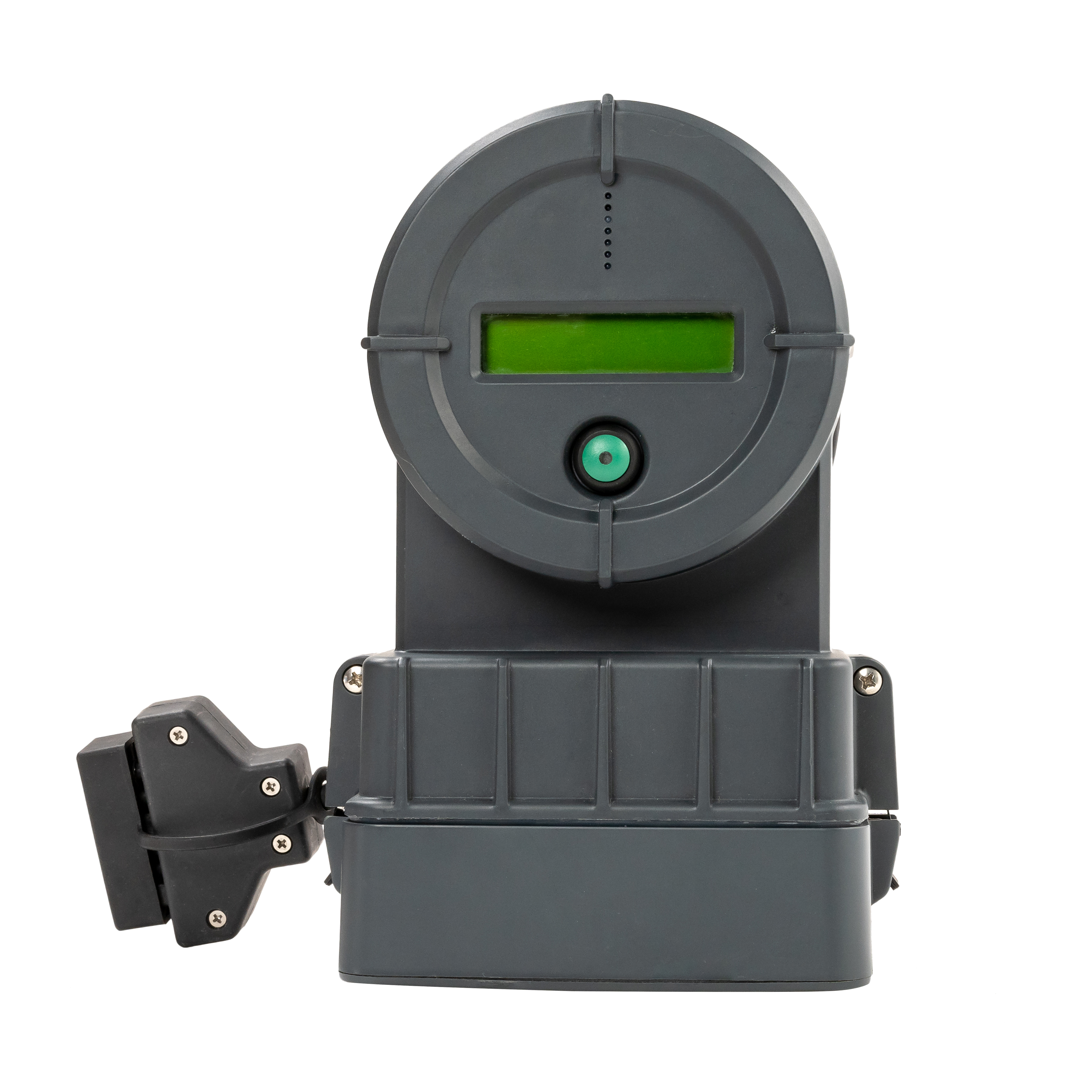

The Warrior EXTREME is the ruggedized version of the Warrior Base Unit, for harsh (combat) operating environments. The performance of both devices is identical. The key differences are in the certification and compliance framework. More specifically, the Warrior EXTREME complies with MIL-STD 461G RE102 and RS103 and certified for higher Ingress Protection (IP) rating (IP56).

The Warrior and Warrior EXTREME share the same accessories, and they utilize the same disposable unit that is used by all other Warrior configurations.

Category:

Superior Performance at a Significantly Lower Per Use Price!

Recognized for their superiority over prevailing warmers in the recently released CoTCCC ARC Guidelines, the Warrior and the Warrior EXTREME set the highest standard of performance for any pre hospital warmer. Not only that they deliver superior performance, but also they accomplish this at a significantly lower cost of ownership, compared with all modern battery operable warmers; a true win win solution.

The Warrior and the Warrior EXTREME:

  • Warm near-freezing blood/IV fluids at up to 200ml/min, vs. only 100-150ml/min of alternative solutions
  • Warm up to 3.5 liters of near-freezing blood/IV fluids with a single charge, vs. 1-2 liters of alternative solutions
  • Uniquely validated to handle intense and intermittent bolus flows (more below)
  • Are 50-70% more economical on a per-use basis!

The Warrior and the Warrior EXTREME are a 3-part system composed of a controller (or Base Unit), battery, and per-patient warmer (i.e. disposable unit). Several accessories are offered so as to optimize the offering to the specific operating environments, such as mount accessory and extension cable. Assembly is simple and fail-safe and takes seconds to accomplish. Blood/IV fluids will be warmed almost from the first even at high resuscitation rates. An LCD display indicates to the user the incoming and outgoing blood/IV fluid temperature at all times. The consumable’s fluid path is aluminum-free, thus eliminating toxicity concerns associated with aluminum. Instead, the consumable uses patented medical grade stainless steel warming technology. The efficiency of our technology ensures immediate warming. The systems measure the blood/IV fluids’ temperature a few hundred times per second and automatically adjusts the heating to ensure 38°C (± 2°C) output. Thus, the Warrior and the Warrior EXTREME handle intermittent bolus flows generated by push-pull resuscitation methods (e.g. hand pump, syringe or Lifeflow-like devices which are fairly common in trauma settings), exceptionally well. The technology has been perfected over several thousand field utilizations.

Product Info

High Performance

  • Fastest: Warms near frozen blood/fluid to 38°C (± 2°C) in a few seconds.
  • Unmatched Delivery Rate: From KVO and up to 200 ml/min delivery rate at 4°C fluid input temperature and 290 ml/min for room temperature fluids, per single (fully charged) battery.
  • Unmatched Battery Capacity: Up to 3.5 liters at 4°C fluid input temperature and 5 liters at 20°C fluid input temperature per single (fully charged) battery.
  • Unique Bolus Flow Handling: Real time sensing and highly efficient warming technology guarantee fast reaction to flow changes.

Designed with the User in Mind

  • Portable: Can fit small transport platforms.
  • Simple To Operate: Fail safe assembly. Functions on gravity feed. Flow can be regulated with pressure bag or pump (300 mmHg).
  • Same Disposable Unit Fits All Protocols: The same disposable unit can be used for blood and fluid products.
  • No Proprietary Tubing: Does not require proprietary blood/IV fluids line. Fits all common IV tubings.
  • Communicative: LCD panel for indications and alerts; over and underheating alerts; battery capacity alerts. Incoming and outgoing field temperature presented at all times.
  • Mountable: Can be mounted to pole, rail or stretcher.
  • Power Source Flexibility: AC operable mode can be added (note: the AC version is not for transports)
  • Unique Continuum of Care Proposition: Same consumable can be used across the entire continuum, simplifying patients’ handoff and reducing cost.

Cutting Edge, Mature, and Safe Underlying Technology

  • Smart Warming Technology: Microprocessor controller highly efficient smart warming technology.
  • Common Heating Element: Medical grade stainless steel coil.
  • Extremely Relaxed Heat Transfer Mechanism: Incremental heat transfer over 220cm / 7.2 ft. coil.
  • Mature Technology: Field Proven, patent protected technology with thousands of field utilizations.
  • Safe Technology: Fail safe design; aluminum free.
  • Defibrillation Proof Type BF Applied Part: Safe to be used jointly with a defibrillator.
  • Meets the Requirements of the Stringiest Standards for Field Operation: Certified for top EMS regulatory standards IEC60601-1, IEC60601-1-2:2014, and IEC60601-1-12 (Warrior EXTREME)

Practically Zero Maintenance

  • Service Cycles: 5 years between service cycles.
  • No Calibration: No need for periodic calibration.

Specifications

Warrior

Warrior EXTREME

Performance
Max delivery rate, 4°C input Up to 200 ml/min Up to 200 ml/min
Max delivery rate, 20°C input Up to 290 ml/min Up to 290 ml/min
Battery capacity, 4°C input Up to 3.5 liters Up to 3.5 liters
Battery capacity, 20°C input Up to 5 liters Up to 5 liters

Physical Characteristics
Dimension (H x W x L) 23.2 x 15.6 x 7.8 cm / 9.13″ x 6.14″ x 3.07″ 23.2 x 15.6 x 7.8 cm / 9.13″ x 6.14″ x 3.07″
Weight 1,720 g / 3.79 lb (Base Unit and batter) 1,720 g / 3.79 lb (Base Unit and batter)
Battery Characteristics

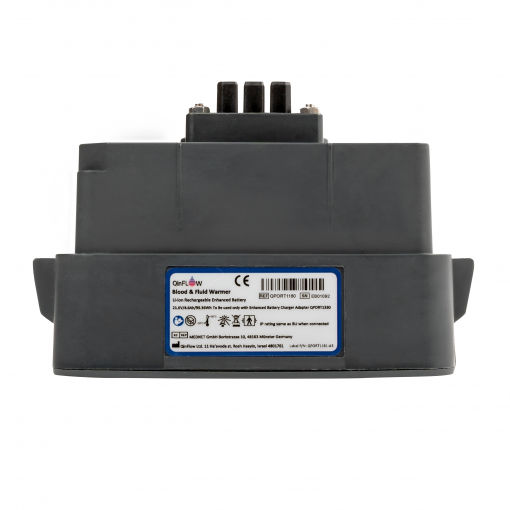

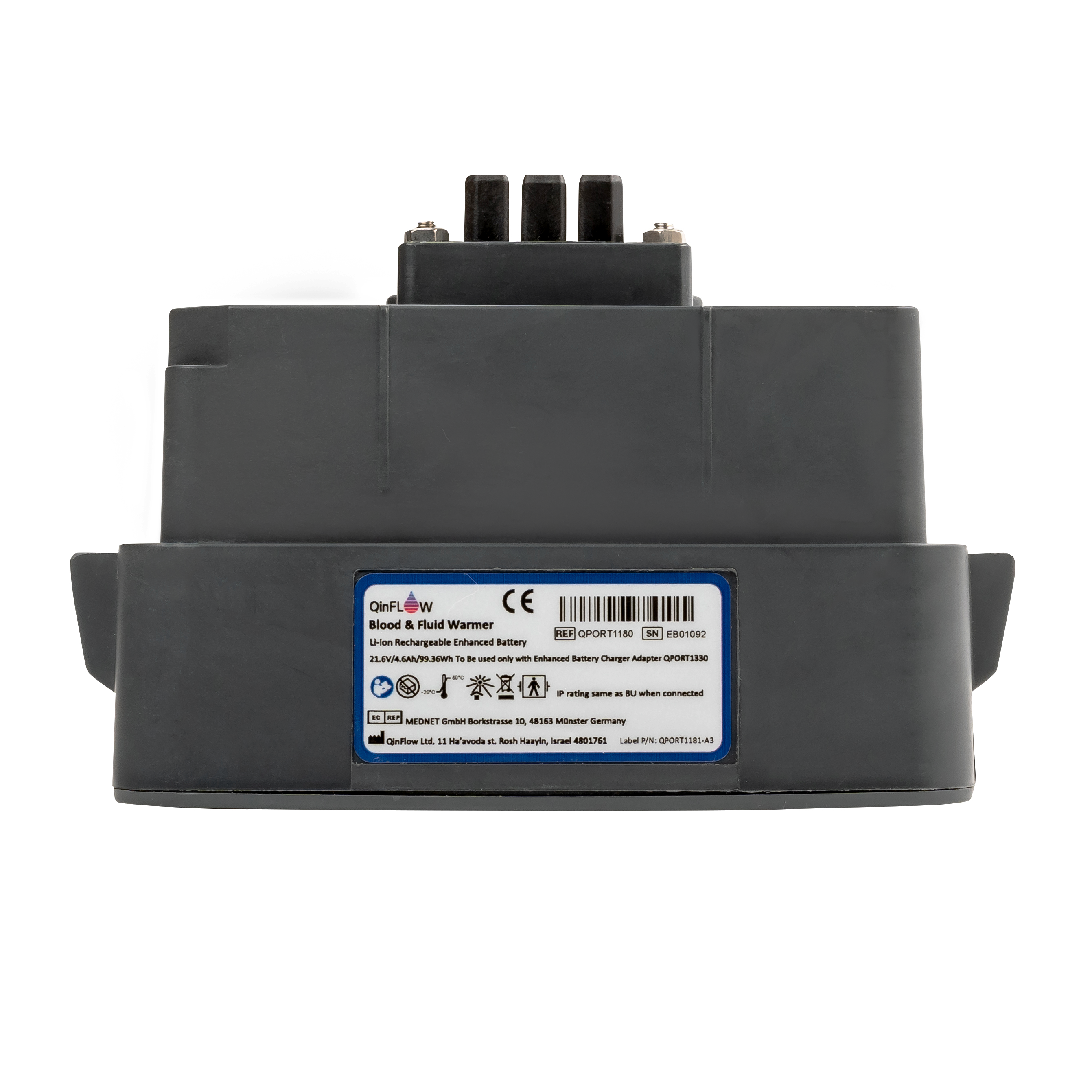

Battery Type Rechargeable, Li ion, 21.6V, 4.6Ah, 99.36Wh Rechargeable, Li ion, 21.6V, 4.6Ah, 99.36Wh
Battery Charging Input Voltage Battery Charging Input Voltage: 100-240 VAC | 50-60 Hz | Max 2.0 A | 12/24V Battery Charging Input Voltage: 100-240 VAC | 50-60 Hz | Max 2.0 A | 12/24V
Battery Life Battery Life: Up to 400 full cycles or 3 years Battery Life: Up to 400 full cycles or 3 years

Standards and Safe to Fly

(partial list)
  • Certified for IEC 60601-1
  • Certified for IEC 60601-1-2:2014 (EMC standard 4th edition)
  • Certified for IEC 60601-1-11
  • Certified for the applicable sections of RTCA / DO 160G
  • Compliant with EN1789
  • Certified for IEC 60601-1
  • Certified for IEC 60601-1-2:2014 (EMC standard 4th edition)
  • Certified for IEC 60601-1-12
  • Certified for the applicable sections of RTCA / DO 160G
  • Compliant with EN1789
  • Compliant with MIL STD 461G RE102 & RS103

Environmental Specifications
Storage Conditions -20⁰C to 60⁰C (-4⁰F to 140⁰F) & 93% RH  -20⁰C to 60⁰C (-4⁰F to 140⁰F) & 93% RH
Operating Conditions -5°C to 40°C (23⁰F to 104⁰F) -5°C to 40°C (23⁰F to 104⁰F)
Transient operating conditions -20°C to 50°C (-4°F to 122°F) & 90% RH (compliant) -20°C to 50°C (-4°F to 122°F) & 90% RH (certified)
Atmospheric Pressure / Altitude -549 to 1,060 hPa / -400 to 4,572 meter (1,312 to 15,000 ft) -549 to 1,060 hPa / -400 to 4,572 meter (1,312 to 15,000 ft)
Ingress Protection (IP) IP22 IP56



Optional Accessories

Mount accessory:

Extension cable:

Regulatory Status

  • The Warrior and Warrior EXTREME are marketed in the USA, Canada, EMEA, Australia, and New Zealand.

Commercial Information

To get a quote for our Warrior & Warrior EXTREME, kindly contact your local QinFlow rep (Find A Distributor), Contact Us, or simply Request A Quote.

Note: Our Compact Disposable Unit (CDU) starts at $63 (volume purchase; GPO pricing), while the consumable price of other modern portable warmers is in the range of $150 to $200 per unit (estimated MSRP). Therefore, the Total Cost of Ownership of the Warrior line is considerably lower than that of alternative modern solutions, especially for those emergency organizations that are using the warmer often. To learn how this may apply to your organization, try Calculating Your Savings.

Disclaimers

The information provided in the Instructions For Use (IFU) shall govern in case of conflict. The information provided here is adjusted to CE approvals; for exact specifications and availability of the USA-cleared version, please refer to the relevant IFU or contact your QinFlow representative.
